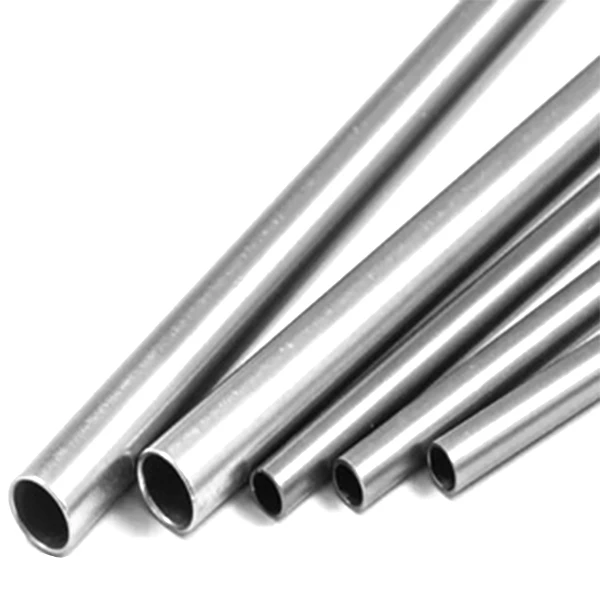

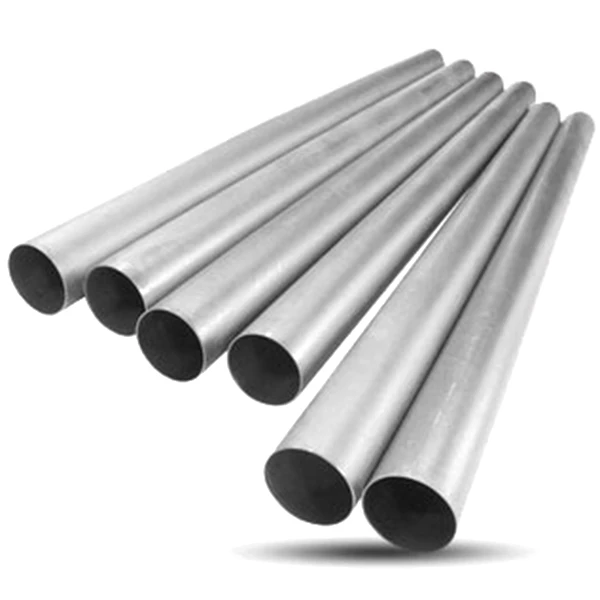

Titanium Gr5 Seamless Tube

About this item:



Titanium Gr5 Seamless Tube is much stronger in comparison to the other commercially pure grades.



Density: 4.43 g/cc



Melting range: Max 1650 °C



Equivalent Material

Type	ASTM	JIS	GOST	DIN	GB
Ti-6Al-4V	Gr5 UNS R56400	TAP6400	BT6	3.7105	TC4



Chemical Composition, %, Max

C	Fe	H	N	O	V	Al	Ti
0.08	0.30	0.015	0.05	0.2	3.5-4.5	5.5-6.75	BALANCE



Mechanical Properties

Tensile strength, min	Yield strength, 0.2% offset, min, Mpa	Elongation at Break, %	Hardness
895 MPa	825 MPa	10	330-390 HV



Dimension tolerances of titanium grade 5 seamless pipes:



Outer diameter tolerance: +/-0.13 mm or +/-0.10 mm (depending on the pipe diameter).



Wall thickness tolerance: +/-0.10 mm.



1. Chemical composition detection: detection by a spectrometer, chemical analyzer, and other equipment.

2. Physical property detection: detection by tensile testing machine, hardness tester, and other equipment.

3. Safety performance test: Detection is carried out through magnetic particle detection, ultrasonic detection, and other equipment.

4. Other tests: including appearance inspection, size inspection, pressure test, etc.



Packaging and labeling (according to customer requirements):

1. Packaging: Packed with plastic film and then packed into a composite multi-layer wooden box suitable for export fumigation.

2. Label: Paste a label on the packaging box to mark the pipe material, model, specification, quantity manufacturer information, etc.



Titanium Gr5 Seamless Tube has extremely high strength, excellent corrosion resistance, and high-temperature stability, so it is widely used in aviation, aerospace, shipbuilding, the chemical industry, medical equipment, automobiles, and other fields.



Titanium-6Al-4V Grade 5 (UNS R56400) is the most widely used application in the titanium alloy family. Grade 5 titanium has good welding, and fabrication, an excellent combination of high strength and toughness. Titanium grade 5 pipe and tube is specified in ASTM B337 (withdrawn), B338, B861, SAE AMS 4942, 4943, Grade 5 titanium seamless pipe and tube is ideal for corrosion-resistant in the aircraft, chemical, offshore, and aircraft industries where a certain strength level and formability is desired.



Aircraft structural components, power generation, chemical processing, high-performance automatic parts, marine applications, and sports equipment.



We supply and manufacture Titanium Gr5 Seamless Tube by ASTM B337, and B338 standards, and other equivalent materials in DIN, JIS, and GB specifications. It specified delivery conditions and final customer specifications for industrial and commercial applications. Special sizes of titanium pipes and delivery issues can be further negotiated and we provide a wide range of solutions for purchasing departments to select alternative grades without specifying product specifications.
