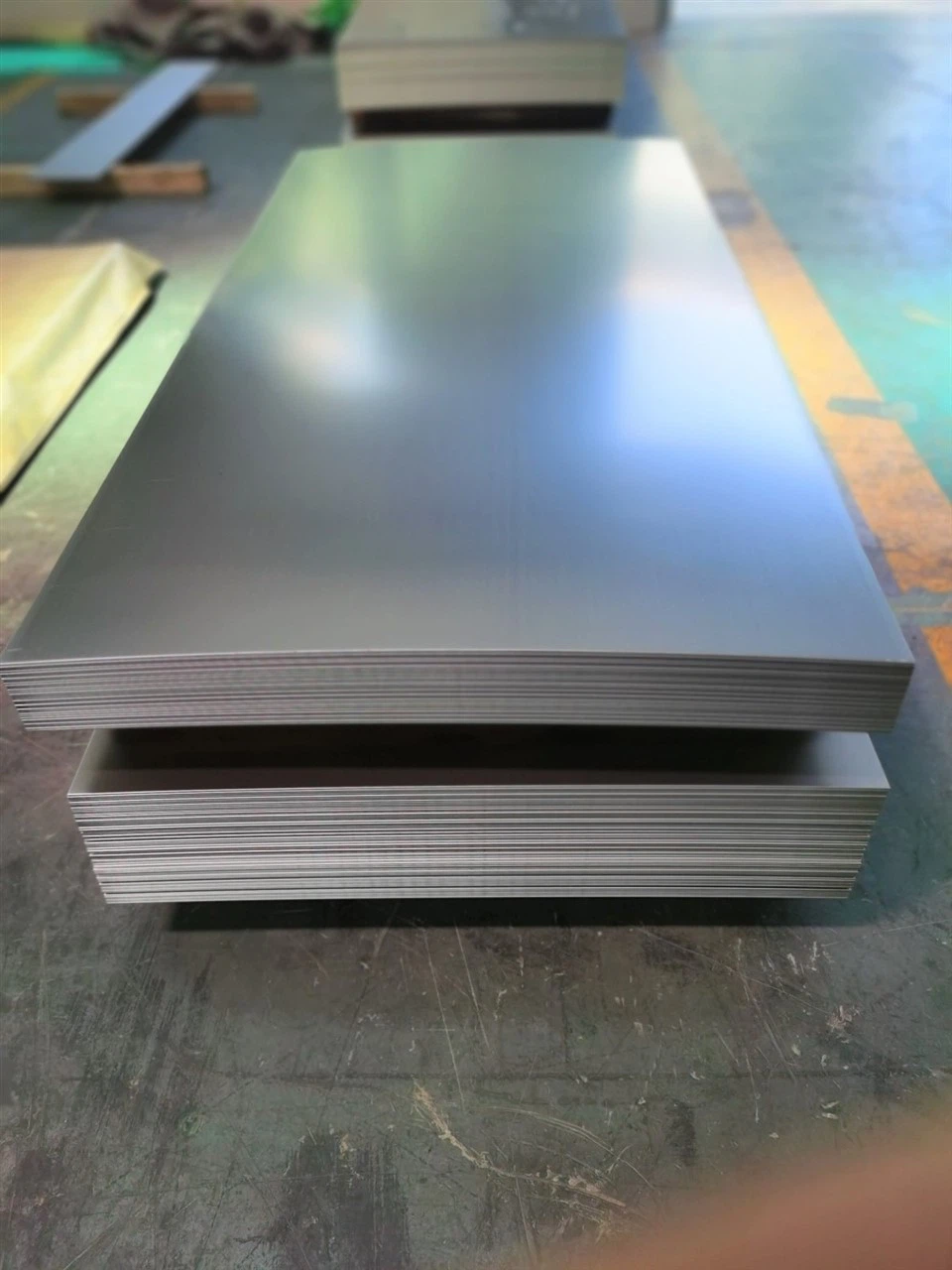

Gr2 Titanium Sheet
Item: Gr2 Titanium Sheet, ASTM B265 Titanium Sheet
Grade: Grade 2
Specification: ASTM B265
Thickness: 0.019"(0.5mm) - 0.187"(4.75mm)
Width: 39.370"(1000mm) - 78.740"(2000mm)
Length: ≤236.22"(6000mm)
Finish: Hot rolling, Cold rolling.
Surface: Polishing, Pickling, 2B.
Payment: T/T, L/C.
MOQ: 100kg
Product Introduction
1. The characteristics of Gr2 Titanium
Gr2 Titanium Sheet is a high performance material. At present, the technology of manufacturing it is constantly improving, such as 3D printing technology, composite material technology, etc., which will greatly improve its performance and application range. At the same time, the production cost is expected to further decrease, so that it can be more widely used in the civilian field in the future.
Compared to Grade 1 and Grade 3 titanium plates, it strikes a balance between strength and plasticity. Grade 1 is softer and is preferred for deep stamping for technical requirements. Grade 3 is more resistant to corrosion and corresponds to high magazine environments. However, compared with Grade 5 titanium alloy, its strength is lower, the cost is lower, the formability is better, and it is applied to non-bearing corrosion resistance scenes.
Although Gr2 Titanium Sheet have many advantages, with the development of science and technology, there may be more new materials for the market in the future. These new materials may surpass it in some respects, but their application cost, workability and other factors will affect their practical application. Therefore, it will still maintain its important position in various high-end industries for a long time in the future.
2. Additional Information
| Weight |
According To The Actual Weight |

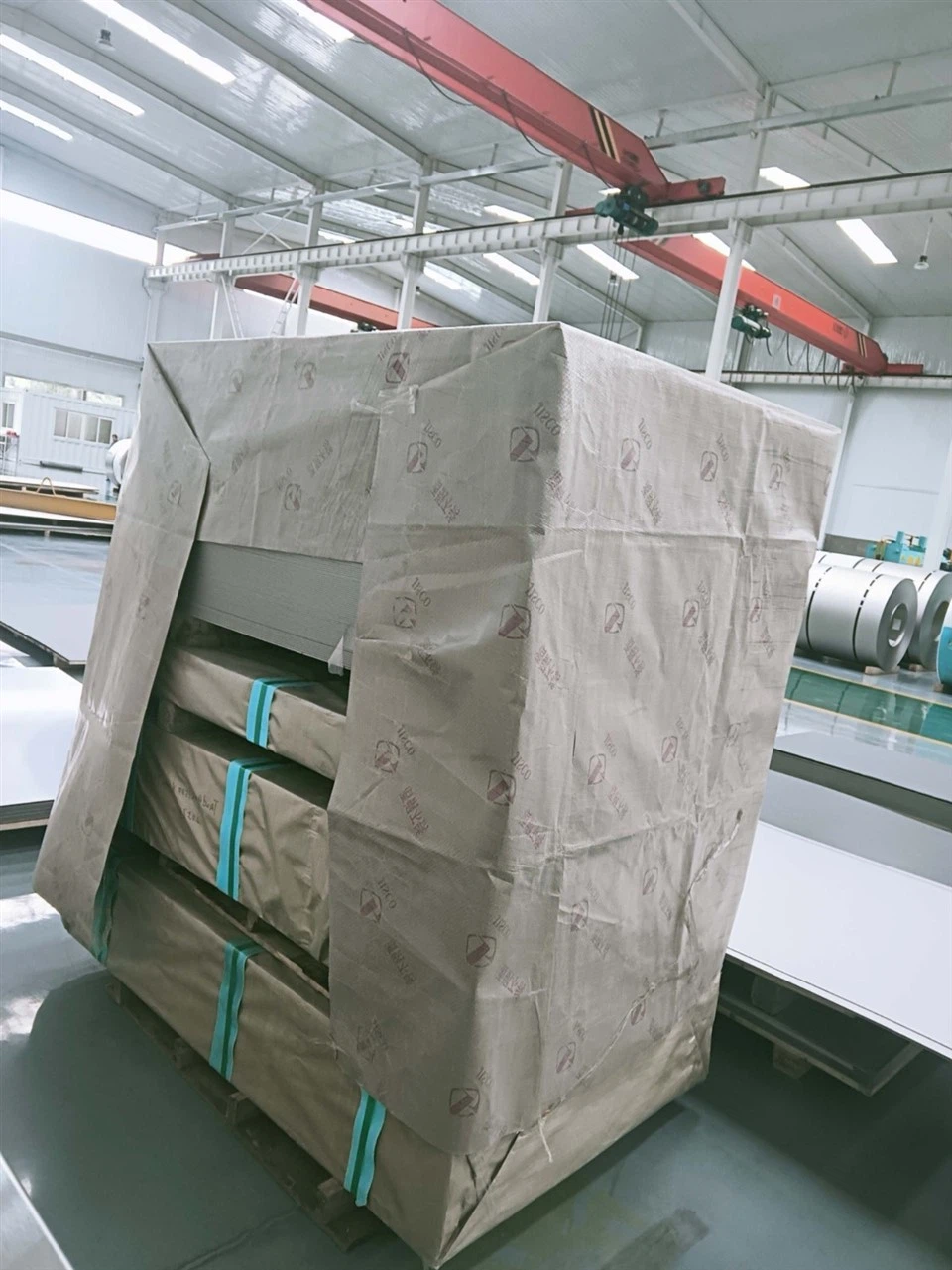

Package |
Sponge Padding + Wooden Case |
|
Certificate |
ISO 9001:2015, (LRQA) EU Certificate |
Price Term |
EXW, FOB, CIF |
|
Transportation |
Ocean, Land, Air |
Place of Origin |
Bao Ji, China (Mainland) |
|
Delivery Time |
5-25 days. |
Supply ability |
3,500 ton/ Year |
- Advanced Equipment
- Rich Experience
- Quality Control
- One-stop Solution
3. Chemical Composition and Tensile Requirement
| Chemical Composition (%) | ||||||||
| Grade | Titanium (Ti) | Carbon (C) | Oxygen (O) | Nitrogen (N) | Hydrogen (H) | Iron (Fe) | Each | Total |
| Grade 2 | ＞99.6 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | ≤0.1 | ≤0.4 |
| Tensile Requirement | |||
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (A%) |
| Grade 2 | 247-450 | ＞345 | ＞20 |
4. Permissible Variations in Thickness, Width and length of Gr2 Titanium Sheet
|
Cold Rolled Sheet
|
|||||
|
Thickness in. (mm) |
Permissible Variations in. (mm) |
Width in. (mm) |
Permissible Variations in. (mm) |
Length ft. (mm) |
Permissible Variations in. (mm) |
|
0.146" - 0.1875" (3.71 - 4.76) |
0.014" (0.36) |
24" - 48" (610 - 1220) |
+ 1/16" (1.60) -0 |
≤10' (3048) |
+ 0.25" (6.35) -0 |
|
0.131" - 0.145" (3.33 - 3.68) |
0.012" (0.31) |
≥48" (1220) |
+1/8" (3.20) -0 |
10' - 20' (3048 - 6096) |
+ 0.5" (12.7) -0 |
|
0.115" - 0.130" (2.92 - 3.30) |
0.010" (0.25) |
/ | / | / | / |
|
0.099" - 0.114" (2.51 - 2.90) |
0.009" (0.23) |
/ | / | / | / |
|
0.084" - 0.098" (2.13 - 2.49) |
0.008" (0.20) |
/ | / | / | / |
|
0.073" - 0.083" (1.85 - 2.11) |
0.007" (0.18) |
/ | / | / | / |
|
0.059" - 0.072" (1.50 - 1.83) |
0.006" (0.15) |
/ | / | / | / |
|
0.041" - 0.058" (1.04 - 1.47) |
0.005" (0.13) |
/ | / | / | / |
|
0.027" - 0.040" (0.69 - 1.02) |
0.004" (0.10) |
/ | / | / | / |
|
0.017" - 0.026" (0.43 - 0.66) |
0.003" (0.08) |
/ | / | / | / |
|
Hot Rolled Sheet
|
|||||
|
Thickness in. (mm) |
Permissible Variations Width ＜84 in. (2131mm) |
Width in. (mm) |
Permissible Variations Width in. (mm) |
Length in. (mm) |
Permissible Variations Length in. (mm) |
|
0.146" - 0.1875" (3.71 - 4.76) |
0.025" (0.64) |
＜60" (1524) |
+ 5/8" (15.88), 0 |
＜120" (3048) |
+ 0.75" (19.05), 0 |
|
0.131" - 0.145" (3.33 - 3.68) |
0.022" (0.558) | 60" - 84" (1524-2134) | + 11/1" (17.46), 0 | + 7/8" (22.23), 0 | |
|
0.115" - 0.130" (2.92 - 3.30) |
0.020" (0.508) |
＜60" (1524) |
+ 5/8" (15.88), 0 |
120" - 240" (3048 - 6096) |
+ 1" (25.40), 0 |
|
0.099" - 0.114" (2.51 - 2.90) |
60" - 84" (1524-2134) | + 0.75" (19.05), 0 | + 1" (25.40), 0 | ||
5. Manufacturing processes
6. Inspection
We proceed with Gr2 Titanium Sheet DT and NDT Tests to ensure the Chemistry and Mechanical properties meet the customer's requirements without defects.
We present the Original MTC (Material Test Certificate), accept PMI (Positive Material Identification) witnessing, and offer PMI machine calibration certificates.
We also accept 3rd party inspections, and we welcome customers to arrange inspections before shipment in our workshop.
7. qualification
Certifications
For detailed information about the certificates, please visit the "About Us - Honors & Qualifications" page.
ISO9001：2015
ISO45001: 2018
Obtained (LRQA) EU Certificate
Obtained (LRQA) EU Certificate
About Company
Located in Baoji city, Shaanxi province, known as China's Titanium Valley. Baoji West Titanium Materials Co., Ltd (West-Ti) was established in 2019 with a registered capital of 60 million yuan. The company was merged with Baoji Hongyuan Titanium Industry Co., Ltd. and Baoji Hengyi Industry and Trade Co., Ltd. (Search This Name but Current company location) both companies have more than 20 years of experience in the titanium industry. In 2019, the jointly established Baoji West Titanium Materials Co., Ltd business covers the processing and sales of rare metals such as titanium coil, plate, bar, wire, and titanium forging.
One-stop Solution
More than 3,500 tons in inventory, and we deliver to our clients promptly.
Rich Experience
With more than 20 years of experience, we achieve prosperity with our clients together.
FAQ
Q: Can you provide customized Gr2 Titanium Sheet based on specific requirements?
A: Yes, we can manufacture customized titanium products tailored to your unique requirements, including dimensions, shapes, and specifications.
Q: What industries do you serve with your titanium products?
A: We cater to multiple industries, including aerospace, medical, chemical, automotive, marine, etc.
Q: Can you provide a price list or quote for your products?
A: Yes, we can provide a price list or a customized quote based on your specific product requirements, quantity, and other factors. Please contact our salesperson for further assistance.
Q: What are your payment terms and conditions?
A: Our payment terms typically include a deposit upfront, with the balance payable upon completion and before shipping. Specific terms may vary depending on the order and can be negotiated with our sales team.
