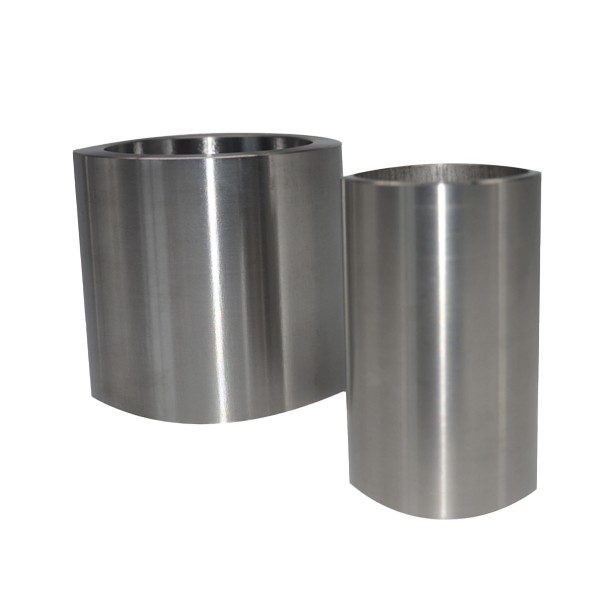

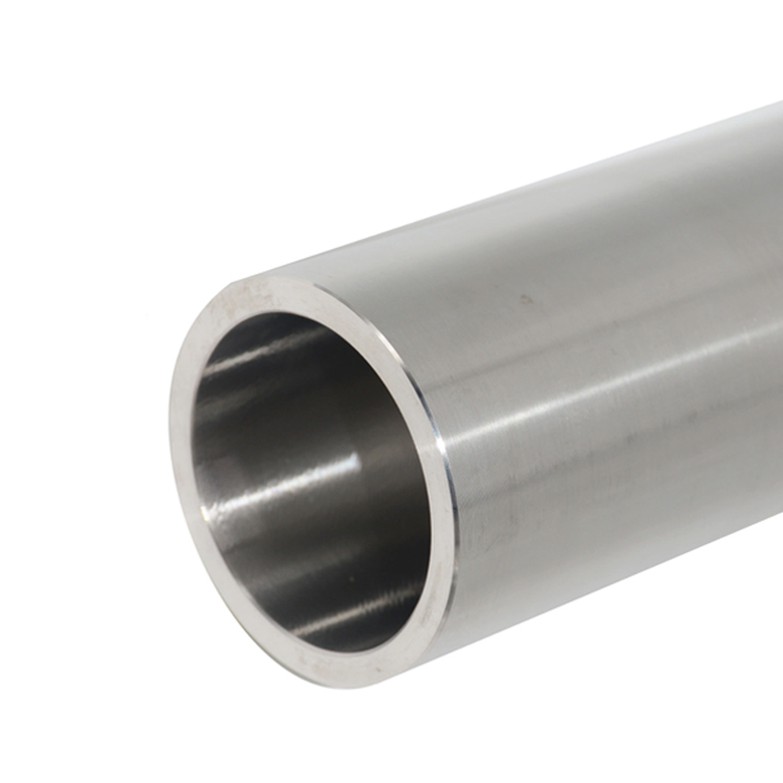

Tantalum Tube

We supply tantalum tubes including seamless tubes and welded tubes & pipe. Welded tantalum tubes & pipes are made from tantalum strips and tantalum foil, welded tubes can be with thin wall thickness and large dimensions.



Tantalum tubing with OD<5mm can also be named as tantalum capillary, this is only available for pure tantalum.



R05400, unalloyed tantalum, powder-metallurgy consolidation.

R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.

R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.

R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt, pure Tantalum Grades

R05200, unalloyed tantalum, electron-beam furnace, or vacuum-arc melt

R05400, unalloyed tantalum, powder-metallurgy consolidation.



-High melting point of 2996 °C

-Good cold ductility

-Recrystallization between 800 °C and 1200 °C (depending on the level of deformation and purity)

-Outstanding resistance against aqueous solutions and metal melts

-Superconductivity

-High level of biocompatibility



We offer a variety of Tantalum Tube (Tantalum Pipe) of high quality to serve our customers. We supply Tantalum Tube (Tantalum Pipe) under international standards and special customer requirements.



Tantalum Tube (Tantalum Pipe) is largely applied in producing tantalum response vessels, tantalum heat exchangers (shell & tube heat exchangers), tantalum pipelines (piping or channel), tantalum condensers, tantalum agitators, tantalum coolers, tantalum boilers, tantalum bayonet heater, tantalum spiral (helical) coil, U-tube heat exchanger or "U" tube bundle heat exchanger during the substance sector for condensing, re-boiling, preheating and cooling of nitric acid, sulfuric acid, hydrochloric acid, formic acid and combinations of those acids with a lot of other chemicals.



Good cold processability

Low vapor pressure

High-temperature strength

High melting point

Excellent chemical stability

Good resistance to corrosion

Good bio-compatibility



Chemistry%
Designation	Chief Component		Impurities Maximum
	Ta	Nb	Fe	Si	Ni	W	Mo	Ti	Nb	O	C	H	N
Ta1	Bal		0.004	0.003	0.002	0.004	0.006	0.002	0.03	0.01	0.004	0.0015	0.002
Ta2	Bal		0.01	0.01	0.005	0.02	0.02	0.005	0.08	0.015	0.01	0.0015	0.01
TaNb3	Bal	<3.5	0.01	0.01	0.005	0.02	0.02	0.005		0.015	0.01	0.0015	0.01
TaNb20	Bal	17.0-23.0	0.01	0.01	0.005	0.02	0.02	0.005		0.015	0.01	0.0015	0.01
Ta2.5W	Bal		0.005	0.003	0.002	3.0	0.006	0.002	0.04	0.015	0.005	0.0015	0.006
Ta10W	Bal		0.005	0.003	0.002	11	0.006	0.002	0.04	0.015	0.005	0.0015	0.006
Special requirements of tantalum wire are to be agreed on by the supplier and buyer negotiations.



Permissible variations in diameter & wall thickness

Outside diameter, inch (mm)	Diameter tolerance, inch (mm), +/-	Permissible variation in wall thickness, ％,+/-
<1 (25.4)	0.004 (0.102)	5
1~1.5 (25.4~38.1)	0.005 (0.127)	5
1.5~2 (38.1~50.8)	0.006 (0.152)	5
2~2.5 (50.8~63.5)	0.007 (0.178)	5
2.5~3.5 (63.5~88.9)	0.010 (0.254)	5

Mechanical requirements (annealed condition)

Grade	Tensile strength psi (MPa), ≥	Yield strength δ0.2, psi (MPa), ≥	Elongation in 1"/2" gage length, ％, ≥
R05200/R05400	30000 (207)	20000 (138)	25
R05252	40000 (276)	28000 (193)	20
R05255	70000 (481)	60000 (414)	15
R05240	40000 (276)	28000 (193)	20
Special requirements to be agreed on by the supplier and buyer of negotiation

Chemical Composition and mechanical property, Ultrasonic testing, Electric non-destructive testing, Hydrostatic testing, Visual surface inspection, and Dimensional inspection.



We can supply Tantalum Tube (Tantalum Pipe) at competitive prices of good quality. We carry a fully stocked facility for your convenience.



Packing: Seaworthy Wooden Case
