Gr5 Titanium Sheet
Item: Gr5 Titanium Sheet
Standard: ASTM B265
Grade: Grade5
Thickness: 0.031"(0.8mm) - 0.314"(8.0mm)
Width: 39.37"(1000mm) - 78.74"(2000mm)
Length: ≤236.22"(6000mm)
Finish: Hot Rolling, Cold Rolling
Surface: Polished, Sandblasted, Pickled
Inspection: ISO9001:2015, PED4.3 EU Certificate
Payment: T/T
MOQ: 200kg
Product Introduction
1. Gr5 titanium alloy Description
Ti6Al4V, the main component of Gr5 Titanium Sheet. Compared with traditional stainless steel and cobalt-based alloys, the use of titanium Gr5 alloy as a biomaterial is increasing due to its lower modulus, superior biocompatibility and enhanced corrosion resistance. These attractive characteristics were the driving force for the early introduction and also the driving force for the recent development of new titanium alloy compositions and orthopedic metastable titanium alloys. The latter has enhanced biocompatibility, reduced elastic modulus, as well as superior strain control and notch fatigue resistance.
Gr5 titanium alloys have the ability to be easily formed and processed, which makes them highly adaptable to manufacturing processes and technologies.
At present, the application of WEST Ti Gr5 Titanium Sheet mainly focuses on industrial applications, such as corrosion-resistant partitions for chemical equipment, thin plates for plate heat exchangers, and corrosion-resistant structural plates for ship engineering, etc. Its application in the latest field is mainly concentrated in the field of consumer electronics. Such as the appearance structural components of consumer products like high-end notebook and mobile phone casings.
2. Gr5 Titanium Sheet Additional Information
| Weight | According To The Actual Weight | Packaging | Tarpaulin + Wooden Crate |
| Payment |
T/T
Payment ≤ 1000 USD, 100% in advance.
|
Certificate |
ISO 9001:2015,
ISO 45001:2018,
PED4.3 EU Certificate (LRQA) |
| Price Term | EXW, FOB, CIF | Transportation | Sea, Land, Air |
| Lead Time | 5-25 days after confirmation the order | Place of Origin | Baoji, China (Mainland) |
3. Gr5 Titanium Chemical composition and Physical Properties
| Chemical Composition |
Fe
|
o |
c
|
N |
H
|
EACH |
TOTAL
|
|||
| grade5 | max. 0.40 | max. 0.20 | max. 0.08 | max. 0.05 | max. 0.015 | max. 0.10 | max. 0.40 | |||
| Physical Properties |
|
|
|
|||||||
| grade5 | min. 828 MPa | min. 895 MPa | min. 10E |
* The above data is based on our company's internal inspection and is for reference only. The actual product data shall be subject to the test report.
4. Gr5 Titanium Sheet Inventory
|
Product Name |
Thickness | Width | Length | Standards | Grade |
| Titanium Sheet |
0.031" - 0.187" (0.8mm) - (4.75mm) |
39.37" - 78.74" (1000mm) - (2000mm) |
≤236.22"(6000mm) |
ASTM B265 | Grade 5 |
| Titanium Plate |
0.187" - 0.314" (4.75mm) - (8.0mm) |
39.37" - 78.74" (1000mm) - (2000mm) |
≤236.22"(6000mm) | ASTM B265 | Grade 5 |
*The data in the table is only a partial listing for reference only. For customized sizes, please contact our staff.

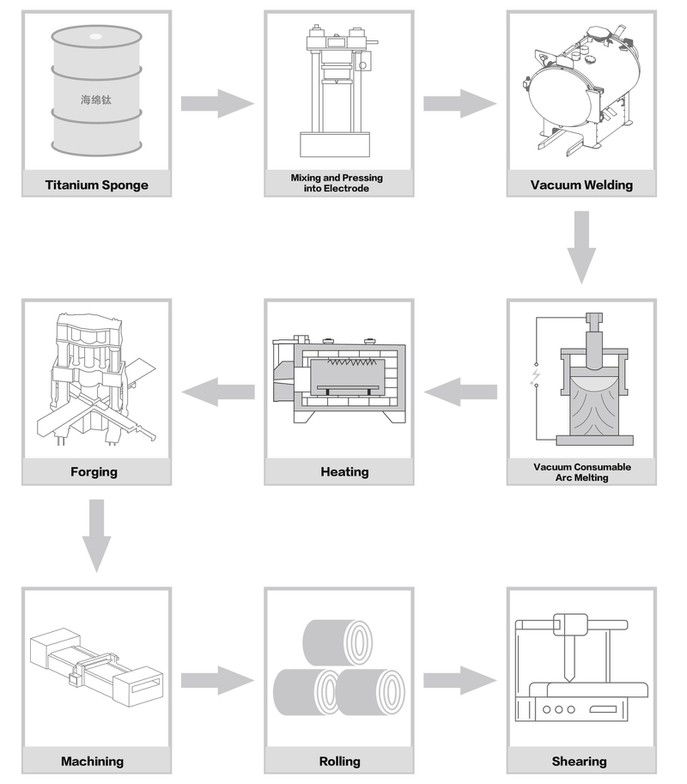

5. WEST Ti Manufacturing processes
6. WEST Ti Inspection
We proceed with Gr5 Titanium Sheet DT and NDT Tests to ensure the Chemistry and Physical properties meet the customer's requirements without defects.
We present the Original MTC (Material Test Certificate), accept PMI (Positive Material Identification) witnessing, and offer PMI machine calibration certificates.
We also accept 3rd party inspections, and we welcome customers to arrange inspections before shipment in our workshop.
Our Certificate
With more than 20 years of experience in manufacturing Titanium Sheet&Plate, Coil. We achieve prosperity with our clients together.
We have obtained most of the professional certificates in the industry and insist on international standards of production.
ISO 9001:2015
PED4.3 EU Certificate
PED4.3 EU Certificate
About company
Baoji West Titanium Material Co., Ltd.
Located in Baoji, Shaanxi province, known as China's Titanium Valley, Baoji West Titanium Materials Co., Ltd (WEST Ti) was established in 2019 with a registered capital of 60 million CNY. Baoji West Titanium Materials Co., Ltd business covers the processing and sales of rare metals such as Titanium Coil, Plate&Sheet. The inventory of Titanium Coil and Plate in the BaoTi Road warehouse is more than 3,500 tons and equipped with equipment such as horizontal and vertical cutting and slitting, which can be customized according to customer requests.
WEST Ti has been oriented by customer requests, adhering to the service principle of "Quality Assurance, Customer First" and the sales philosophy of "Small Profits but Quick Turnover", with the company principle of "Credit Standing Paramountcy", WEST Ti keeps on providing our customers with higher-quality titanium products.
FAQ
For more questions, please refer to the FAQ or contact our service team.
Q: Can you provide customized titanium products based on specific requirements?
A: Yes, we can manufacture customized titanium products tailored to your unique requirements, including dimensions, shapes, and specifications.
Q: What is the lead time for production and delivery?
A: Lead times vary depending on the product type, quantity, and customization level. We have an inventory of 3,500 tons in our warehouse, so most orders are delivered in 7-9 days.
Q: What are your Gr5 Titanium Sheet payment terms and conditions?
A: Our payment terms typically include a deposit upfront, with the balance payable upon completion and before shipping. Payment ≤ 1000USD, 100% in advance.
Payment ＞ 1000USD, shall be T/T 30% before production, balance T/T 70% before shipment.
Q: What certifications do your products have?
A: Our products follow multiple certifications, such as ISO 9001:2015, ISO 45001:2018, and PED4.3 EU Certificate (LRQA), ensuring compliance with international standards and regulations.
