Gr1 Titanium Plate
Item: Gr1 Titanium Plate, ASTM B265 Titanium Plate
Grade: Grade 1
Specification: ASTM B265
Thickness: 0.187"(4.75mm) - 0.472"(12.0mm)
Width: 39.370"(1000mm) - 78.740"(2000mm)
Length: ≤236.22"(6000mm)
Finish: Hot Rolling, Cold Rolling
Surface: Polished, Pickled, 2B
Payment: T/T, L/C
MOQ: 100kg
Product Introduction
1. The characteristics of Titanium plate
Titanium is a metal with lightweight but has good strength and corrosion resistance. Gr1 titanium plate is made from titanium ingot. It can maintain its color in harsh environments and not fade for a long time. There is an oxide film on the surface of the titanium plate, which makes it have good durability and wear resistance. The service life of Titanium sheets is more than three times that of copper plates and can reach 10-20 years depending on operating conditions. The electrolytic copper produced from Titanium sheets has a dense crystalline structure, a smooth surface, and excellent quality.
Because titanium has such outstanding performance, different countries and industries have also developed strict product standards to ensure its reliability and safety in a variety of applications. The following is a brief introduction to the standards of titanium products in major countries:
| China National Standard | GB/T3621-2007, GB/T13810-2007. |
| USA Standard | ASTM B265, ASTM F136, ASTM F67. |
| Russian Standard | BT1-00, BT1-0, BT1-2, etc. |
| American specifications | GR1, GR2, GR4, GR5, GR7, GR9. |
| Chinese specifications | TA0, TA1, TA2, TA3, TA5, TA6, TA7, TA9, TA10, TC4. |
As a Professional Titanium Supplier. We not only strictly follow the international mainstream standards such as ASTM, EN, GB/T, but also provide customized solutions according to the specific specifications of your country and industry to ensure that products successfully pass various certifications and application assessments.
WEST Ti always strictly control quality with high standards, in order to help global customers more secure and more efficient completion of every project.
2. Additional Information
| Certificate | ISO 9001:2015, PED EU Certificate (LRQA) | Packaging | Tarpaulin + Wooden Crate |
| Transportation | Sea, Land, Air | Price Term | EXW, FOB, CIF |
| Lead Time | 2-30 days | Place of Origin | Baoji, China (Mainland) |
| Delivery Time | 5-25 days | Supply ability | 3,500 Ton/ Year |
3. Chemical composition and Physical Properties
| Grade | Titanium (Ti) | Oxygen (O) | Iron (Fe) | Nitrogen (N) | Hydrogen (H) | Each | Total |
| Grade 1 |
Balance (≥ 99.5%) |
≤ 0.18% | ≤ 0.20% | ≤ 0.03% | ≤ 0.006% | ≤ 0.1% | ≤ 0.4% |
| Density | Yield Strength (MPa) | Tensile Strength(MPa) | Elongation(A%) |
| 4.51 g/cm³ | ≥230 MPa (ASTM B265: 138-310 MPa) | ≥240 MPa (ASTM B265:＞240 MPa) | ≥30% (ASTM B265:＞24%) |
* The above data is based on our company's internal inspection and is for reference only. The actual product data shall be subject to the test report.
3. Gr1 titanium plate Inventory
| Surface Finish |
Hot Rolling Pickling / NO.1
|
| products |
 |
| Grade: Grade 1 |
5.0*1000*4000 (mm) |
| specification: ASTM B265 | 5.0*1500*2000 |
| 5.0*1500*3000 | |
| 5.0*1500*3500 | |
| 5.0*1500*4000 | |
| 5.0*1500*6000 | |
| 6.0*1000*1500 (Sandblasted) | |
| 6.0*1000*2000 (Sandblasted) | |
| 6.0*1000*3000 (Sandblasted) | |
| 6.0*1500*1000 | |
| 6.0*1500*1500 | |
| 6.0*1500*2000 | |
| 6.0*1500*3000 | |
| 6.0*1500*3500 | |
| 6.0*1500*5500 | |
| 6.0*1500*6000 | |
| 6.5*1000*1500 | |
| 6.5*1000*2000 | |
| 6.5*1250*1000 | |
| 6.5*1250*1500 | |
| 6.5*1250*1000 | |
| 6.5*1250*6000 | |
| 8.0*1000*1000 | |
| 8.0*1000*2500 | |
| 8.0*1000*3500 | |
| 8.0*1500*1000 | |
| 8.0*1500*1500 (Sandblasted) | |
| 8.0*1500*2000 (Sandblasted) | |
| 8.0*1500*2000 | |
| 8.0*1500*2500 | |
| 8.0*1500*3000 | |
| 8.5*1020*3500 | |
| 8.0*1500*4000 | |
| 8.0*1500*6000 | |
| 10.0*1500*1500 | |
| 10.0*1500*2000 | |
| 10.0*1500*3000 | |
| 10.0*1500*3500 | |
| 10.0*1500*6000 |
*The data in the table is only a partial listing for reference only. For customized sizes, please contact our staff.
|
Specified thickness, inches (mm) |
Width, inches (mm)
|
|||
|---|---|---|---|---|
|
＜ 84" (＜2134mm) |
84" - 120" (2134mm - 3048mm) |
120" - 144" (3048mm - 3658mm) |
＞ 144" (＞3658mm) |
|
|
0.1875" - 0.375"
(4.76mm - 9.52mm)
|
0.045" (1.14mm) |
0.050" (1.27mm) |
0.065" (1.65mm) |
--- |
|
0.375" -＜0.750" (9.52mm - 19.05mm) |
0.055" (1.40mm) |
0.060" (1.52mm) |
0.075" (1.90mm) |
0.090" (2029mm) |
* The above values are for reference only; the actual values shall be subject to the test report.
4. Inspection
We proceed with Gr1 Titanium Plate DT and NDT Tests to ensure the Chemistry and Mechanical properties meet the customer's requirements without defects.
We present the Original MTC (Material Test Certificate), accept PMI (Positive Material Identification) witnessing, and offer PMI machine calibration certificates.
We also accept 3rd party inspections, and we welcome customers to arrange inspections before shipment in our workshop.

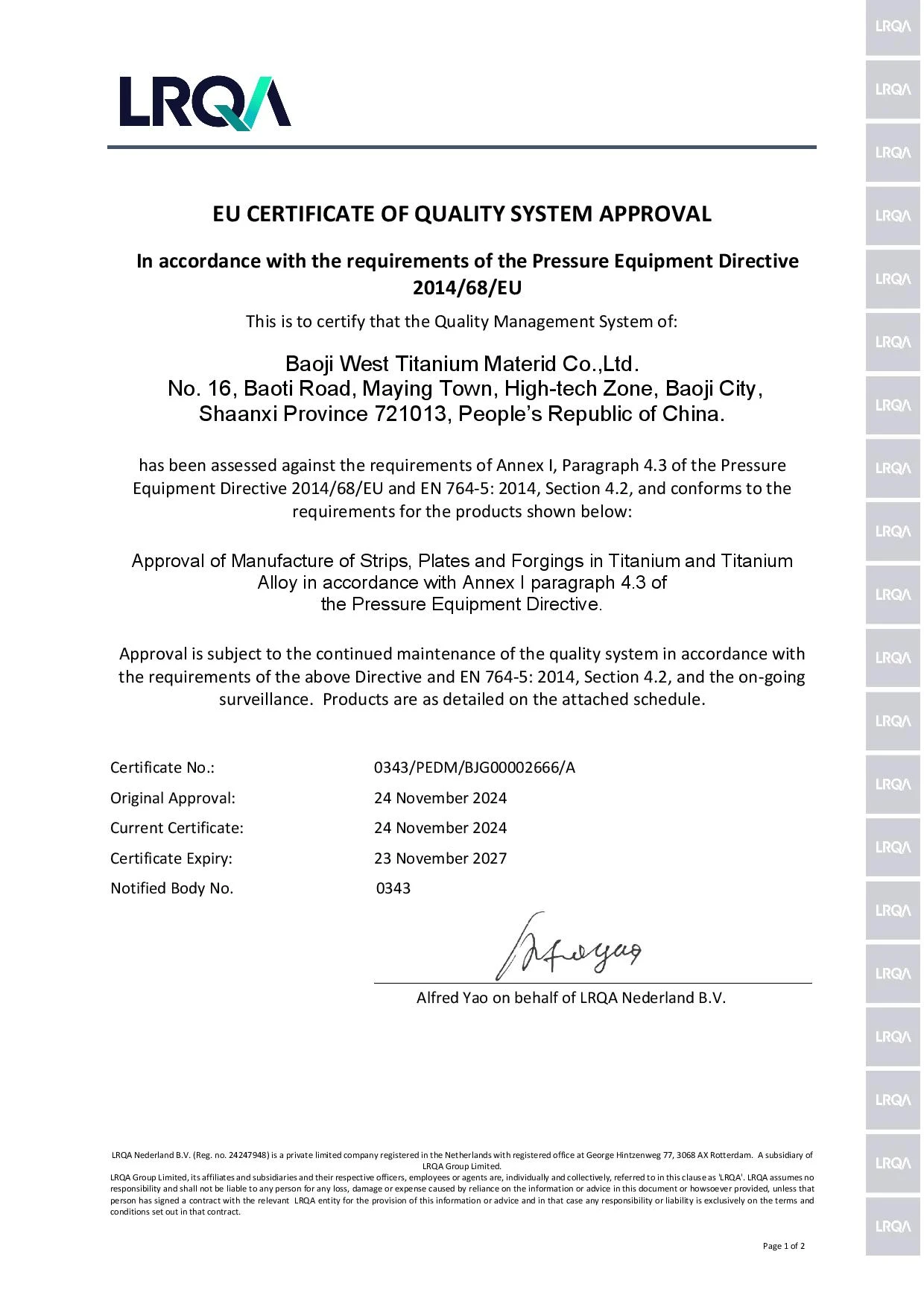

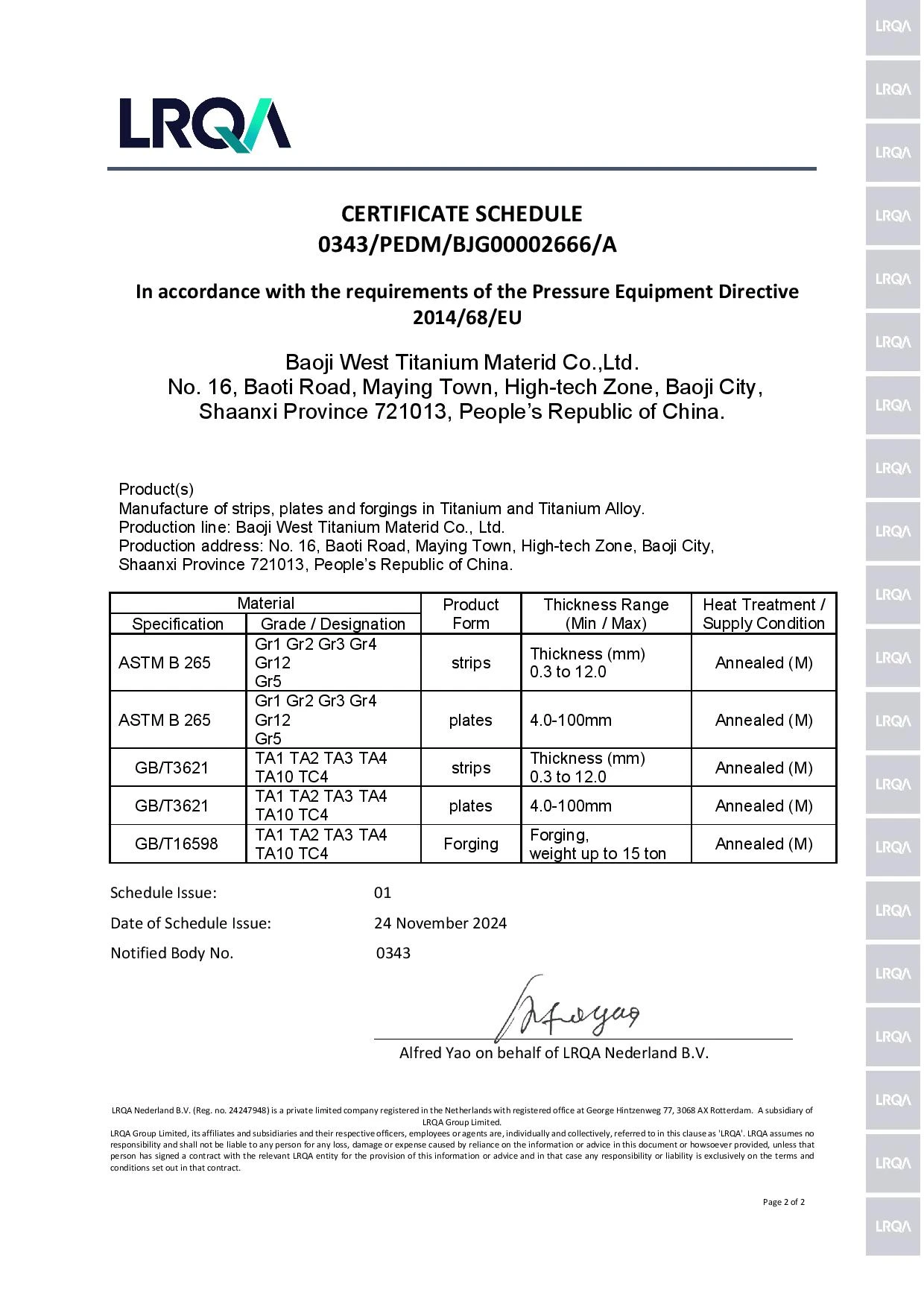

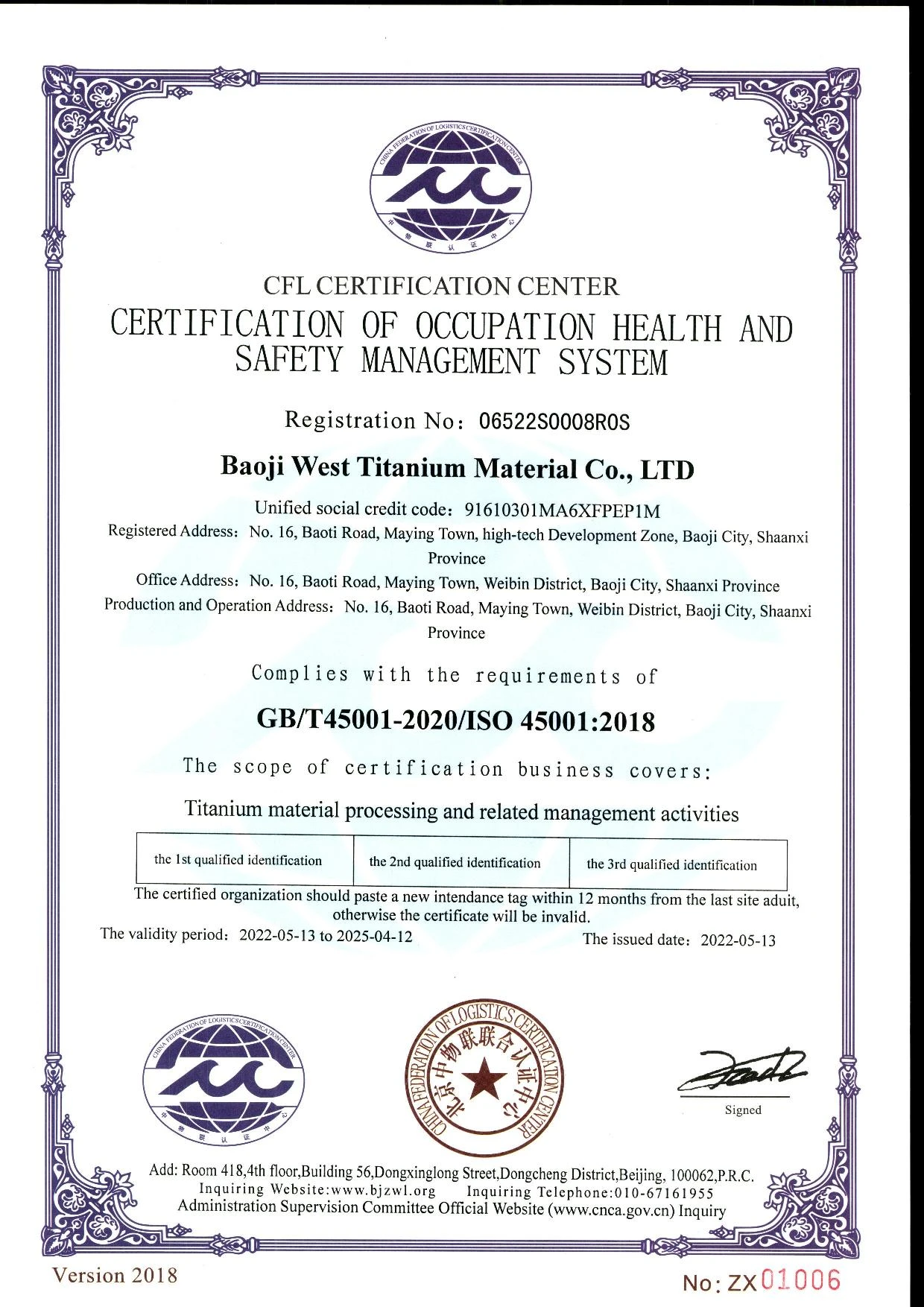

5. Certificate
qualification
For detailed information about the certificates, please visit the "About Us - Honors & Qualifications" page.
2022/05
2022/05
2024/11
2024/11
FAQ
For more questions, please refer to the FAQ or contact our service team.
Q: Can you provide Gr1 Titanium Plate sample?
A: We can provide the small samples in stock, as long as you contact us. Customized samples will take about 5-7 days.
Q: What are your payment terms and conditions?
A: Our payment terms typically include a deposit upfront, with the balance payable upon completion and before shipping. Specific terms may vary depending on the order and can be negotiated with our sales team.
Q: Will you deliver the goods on time?
A: Yes, we promise to provide the best quality products and delivery on time. Honesty is our company's tenet.
