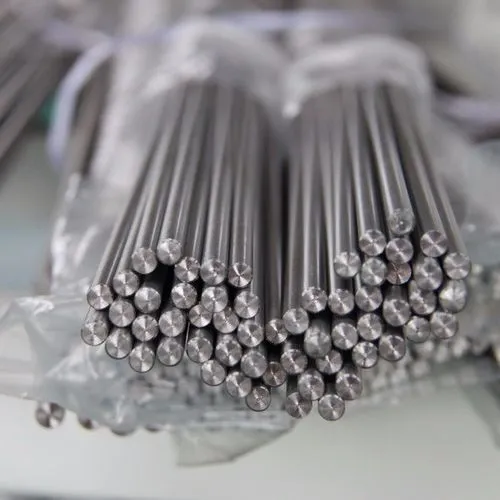

Titanium Alloy Round Bar

Utilized in many challenging applications across aerospace, defense, medical, industrial, and oil and gas industries, with the unique combination of high strength, lightweight, corrosion resistance, biocompatibility, and higher temperature performance, the titanium alloy round bar has the following advantages:

Low density and high strength

Exceptional corrosion resistance

Excellent elevated temperature properties

Excellent bearing on cryogenic property

Essentially nonmagnetic

Nontoxic, non-allergenic, and fully biocompatible

Good thermal properties

Low modulus of elasticity

Low thermal expansion coefficient

High melting point

Excellent aesthetic qualities



Hot forging is a process carried out above the temperature of metal recrystallization. Hot rolling is a rolling process carried out above the recrystallization temperature. The rolling process is in which the plastic deformation temperature during cold rolling is lower than the recovery temperature.



Annealing: A metal heat treatment process in which a metal is slowly heated to a certain temperature, held for sufficient time, and then cooled at an appropriate rate (usually slow cooling, sometimes controlled cooling).



Pickling: Immerse the titanium plate in an acidic aqueous solution to remove oxide and other thin films on the metal surface. It is a pre-treatment or intermediate treatment for electroplating, enamel, rolling, and other processes.





Item Name	Titanium Alloy Round Bar
Standards	GB: TA1, TA2, TC4, TA9, TA10, TA18 ASTM: Gr1, Gr2, Gr5(Ti-6Al-4V), Gr7, Gr9, Gr12, Gr23
Application	Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.





Mechanical property of titanium rod/bar

Grade	Tensile Strength		Yield strength		Elongation(%)
	Ksi	Mpa	Ksi	Mpa
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
4	80	550	70	483	15
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	10





West-Ti advantages:

Competitive price

Promptly delivery

TQC: IOS9001

Material Guarantee: melting with our VIM furnaces, 100% titanium sponge raw material.



Delivery	3-7 days (by air)
Payment	T / T, 30% in advance.
Shipment	FOB, EXW, CIF
Package	Fumigation cabinets for export
Capacity	100 tons/per month.
MOQ	200 kg.



Applications: titanium alloy round bars are widely used in the following:

Electroplating hanging equipment industry, spectacles, clocks, titanium equipment, watches, accessories, electronics, sports equipment, mechanical equipment, environmental protection equipment, golf, chemical engineering, aerospace, and corrosion-resistant equipment, and precision processing industries. Oil and gas production, aerospace.
