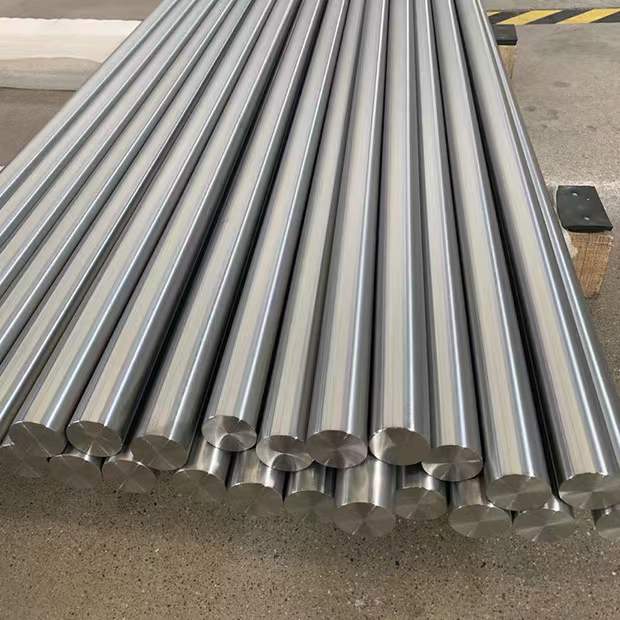

Gr5 Titanium Round Bar

With excellent corrosion resistance, small density, high specific strength, good toughness, and weldability, the GR5 titanium round bar is widely applied in aerospace, petrochemical, shipbuilding, medical, automotive, marine engineering, etc.



2. Chemical Composition Grade	N, Max	C, Max	H, Max	Fe, Max	O, Max	Al	V	Residuals, Max Single	Residuals, Max total	Ti
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	0.1	0.4	Balance





Grade	Tensile Strength, Min MPa	Yield Strength Min MPa	Elongation %	Reduction of Area, min %
Gr5	895	828	10	25









Healthy environmental protection of metal



Good corrosion resistance, Keeps rustless in seawater for 100 years



Widely working temperature: -259°C~500°C



High specific strength



Excellent heat transfer performance



Owing to the high-strength alloy and strength-to-weight ratio, making Gr5 titanium bar is an ideal choice for applications that require strength and durability without adding excess weight. Additionally, the Gr5 titanium bar is highly resistant to corrosion, which makes it suitable for parts working in harsh environments.



We supply Gr5 titanium bars from diameters 6mm to 300mm. It can also be tailored and produced by customer requirements, such as length and shape.

Advantages of Gr5 Titanium Round Bar



Gr5 rod offers a range of benefits that make it an attractive choice for applications. One of the significant advantages is its strength. Gr5 titanium has a tensile strength of up to 130,000 psi, which makes it stronger than other materials, including steel.



Another advantage of Gr5 titanium is its corrosion resistance. Titanium is highly resistant to corrosion, which makes it an ideal choice for use in harsh environments.



In addition, the Gr5 titanium bar is also lightweight, making it a better choice for applications where weight is a critical factor, such as in the aerospace industry.



in Chinese GB, Gr5 is with specification of TC4, with the composition of Ti-6Al-4V.



Manufacturing process: Hot forging - Hot rolling - Turning polishing (polishing)



Features: Titanium and alloy have good comprehensive mechanical properties.



Long-term use parts below 400°C, low-temperature parts such as containers and pumps, military parts, medical equipment, outdoor parts, parts with high strength requirements, and aerospace equipment.



Owing to Gr5's good comprehensive properties, it is also widely used in the chemical industry, water supply, drainage, oil, light industry, freezing, sanitation, firepower, shipbuilding, and other projects.



Titanium's appearance is like steel. It has a melting point of 1672℃, which belongs to refractory metal, Gr5 can work in an environment of high temperatures.



China is a country rich in titanium resources, Baoji, Shannxi province is known as China's Titanium Valley, where West-ti is located.
