Gr5 Titanium Bar Hexagon
Item: Gr5 Titanium Bar Hexagon
Material: Gr5 (Ti-6Al-4V)
Standard: ASTM B348.
Finish: Hot-rolling, Cold-rolling, Annealing, and Polishing.
MOQ: 100kgs
Payment: T/T at sight.
Packing: as per the client's request.
Product Introduction
Description
Also known as Ti6Al4V, GR5 is a versatile titanium alloy with good strength and elongation.
Chemical composition
|
Grade |
Al Max |
V Max |
|
N Max |
C Max |
H Max |
Fe Max |
O Max |
Residuals Element |
Max Total |
|
Gr5 |
5.5-6.75 |
3.4-4.5 |
|
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
0.1 |
0.4 |
Gr5 Titanium Alloy Mechanical Properties
|
Grade |
Tensile strength, Mpa(min) |
Yield strength, MPa(min) |
Elongation %(min) |
Reduction of Area % (min) |
|
Gr5 |
895 |
828 |
10 |
25 |
Gr5 has characteristics such as lightweight, high strength, strong heat resistance, corrosion resistance, etc. Titanium has good gettering properties and is also used in high vacuum technology in electronic vacuum technology.

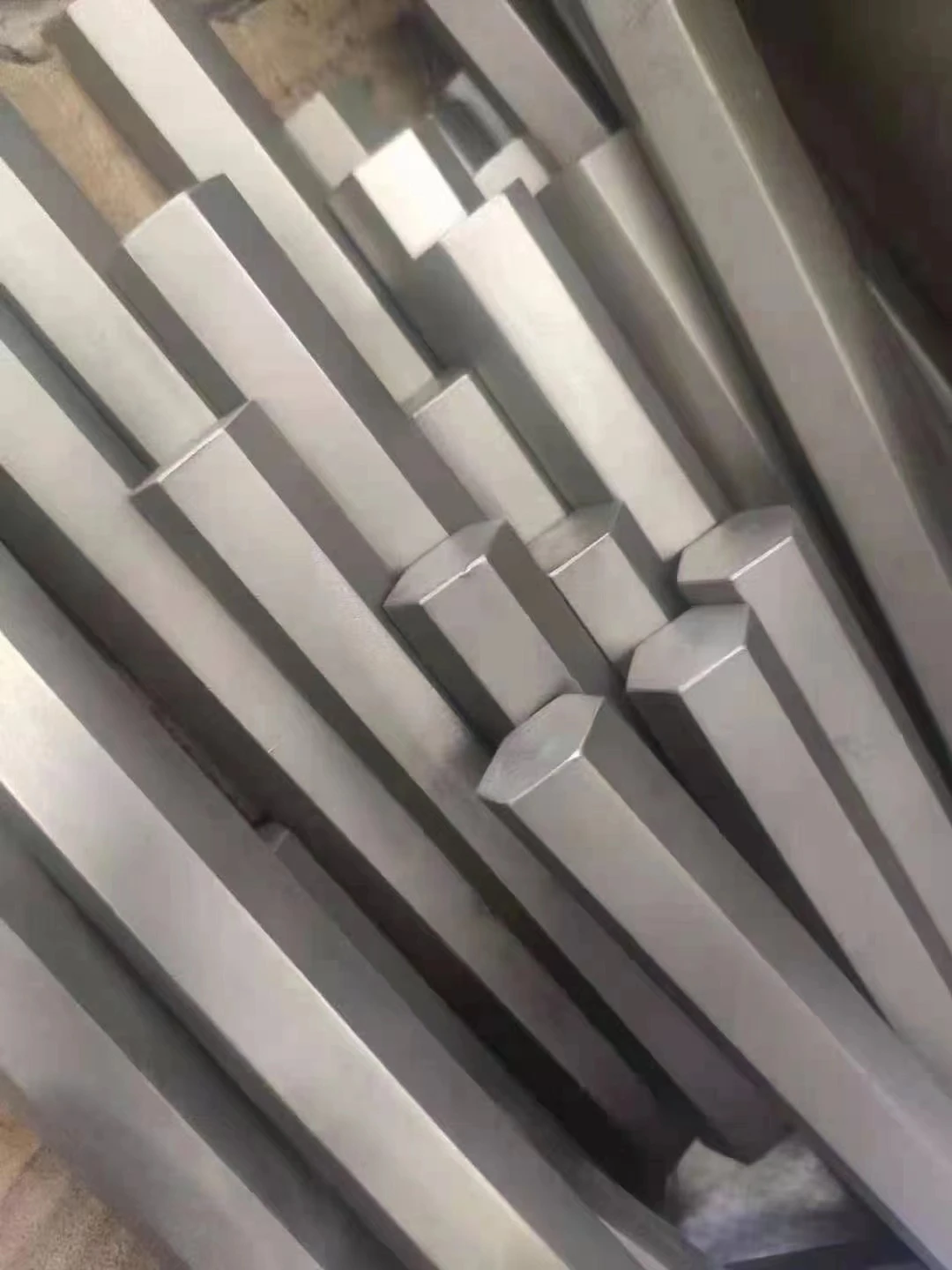

Gr5 titanium bar can be strengthened by heat treatment, has high strength at room temperature, and has good heat resistance at medium temperature.Gr5 titanium bar hexagon is usually produced by hot rolling and further processed by cold drawing to the desired size.
The manufacturing processes include forging, rolling, annealing, machining, and surface treatment. These processes ensure the size meets the required tolerances, finish, and mechanical properties.
Gr5 titanium Bar Hexagon Advantages:
High strength-to-weight ratio: means it is lightweight and yet incredibly strong.
Corrosion resistance: makes it a great choice for applications that require long-term performance in corrosive environments.
Good biocompatibility: makes it ideal for use in medical implant devices.
Applications
Aerospace industry for critical structural components such as landing gears and wing spars.
Medical industry for implants such as orthopedic plates and dental implants.
Chemical and offshore industries for equipment such as heat exchangers, pressure vessels, and subsea pipelines.
In summary, the Gr5 Titanium hexagon bar has been widely used in many industries, including engineering, architecture, medicine, and aerospace. Its high strength-to-weight ratio makes it ideal for structural components in aircraft, rockets, and space vehicles. It is also used in the medical industry for the production of surgical tools, prosthetics, and implants. In the automotive industry, it is used to produce parts like exhaust systems, suspension components, and brake calipers. The uses of the Gr5 Titanium bars don't stop there, it also makes for excellent materials for marine and chemical processing.
Why Choose the Gr5 Titanium Bar?
The unique properties of the Gr5 Titanium bar make them the preferred choice for a wide range of applications. Its high strength-to-weight ratio makes it ideal for structural components where weight reduction is critical. Additionally, its high toughness and ductility make it excellent for applications that require good wear resistance, such as medical implants. The superior corrosion resistance of the titanium Gr5 makes it last longer, even in harsh environments.
In conclusion, the titanium bar hexagon has revolutionized many industries due to its exceptional properties. Its wide-ranging applications and production process make it an essential material in today's world. If you want to improve your product quality and enhance your business, the Gr5 Titanium bar hexagon will be a better choice.
