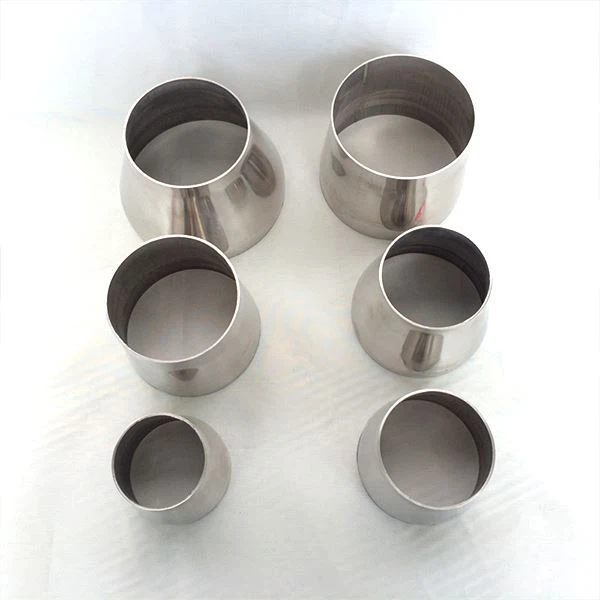

Titanium Concentric Reducer

Titanium reducer is a part that changes the direction of the pipelines. Titanium material has good corrosion resistance have been widely used in chemical, petroleum, petrochemical, vacuum salt production, preparation, marine engineering, power plants, and harsh environment pipelines.





Titanium Pipe Reducers are produced by forging and welding, and small-diameter reducers are formed by spinning.



The diameter reduction of the reducer is to put the large end diameter of the pipe into the mold and shrink the pipe diameter by pressing.



Diameter expansion is to expand the diameter of the small end of the pipe through a mold.



Stamping and punching.



In addition to using tubes for diameter reduction or expansion, titanium reducers can also be made by stamping and stretching.



Titanium reducers are mainly used in the following situations:

When the flow quantity of the fluid changes in the pipeline (such as increasing or decreasing), but the flow rate is required to remain the same, to achieve this purpose titanium reducers are used.



At the inlet of the pump, to prevent cavitation, it is necessary to use a reducer.



At the joints with instruments, such as flowmeters and regulating valves, to connect with the instruments, reducers are also required.



Item	Titanium concentric reducer
Grade	Gr1/Gr2/Gr7/Gr9/Gr12
Technique	Forged, Welded, Rolled
Standard	ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9
Inspection	X-ray detection
Delivery State	Annealed
Surface	Sandblasted, Polishing, Pickling
Product Marking	By laser marking
Application	Petroleum, Chemical Industry, Chloralkaline, Metallurgy, Carbonization, Refrigeration, Light Industry, Salt Industry, Electric Power, etc.





Titanium material has the advantages of high strength, lightweight, good heat transfer performance, corrosion resistance, etc., and has been widely used in the chemical industry. These characteristics make it a better choice for chemical engineering. Titanium concentric reducers have been used in the pipelines that contains corrosive medium or work in harsh environment. Titanium concentric reducers can stand with corrosive media due to their good corrosion resistance, such as ion membrane caustic soda, propylene oxide, etc. Titanium reducers have been widely used in chemical, petroleum, petrochemical, vacuum salt production, preparation, marine engineering, power, equipment, and pipelines, and also used in formic acid and methane chloride.



Titanium reducers are widely used due to their good corrosion resistance, such as ion membrane caustic soda, propylene oxide, etc. Titanium pipe fittings have been widely used in chemical, petroleum, petrochemical, vacuum salt production, preparation, marine engineering, power, equipment, and pipelines. Titanium concentric reducers are also used in formic acid, methane chloride, and other projects to solve pipeline corrosion problems.



Payment: L/C, T/T at sight.



MOQ: 1pc.



Package: Ply wooden case or as requested.



Delivery: 20 workdays after receipt of your order.



Inspection Content: DT and NDT test to ensure the Chemistry and Physics Mechanical properties.



We also accept third-party inspections.
