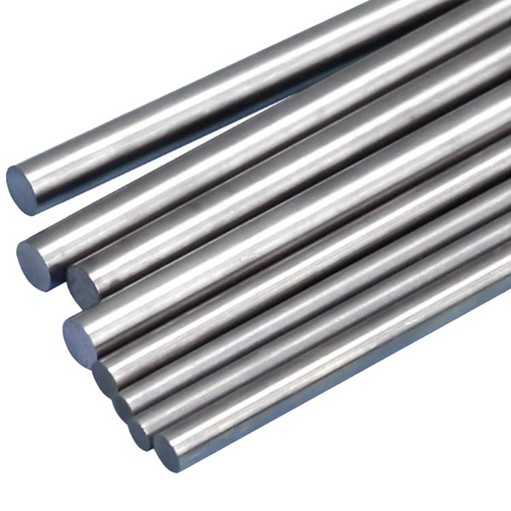

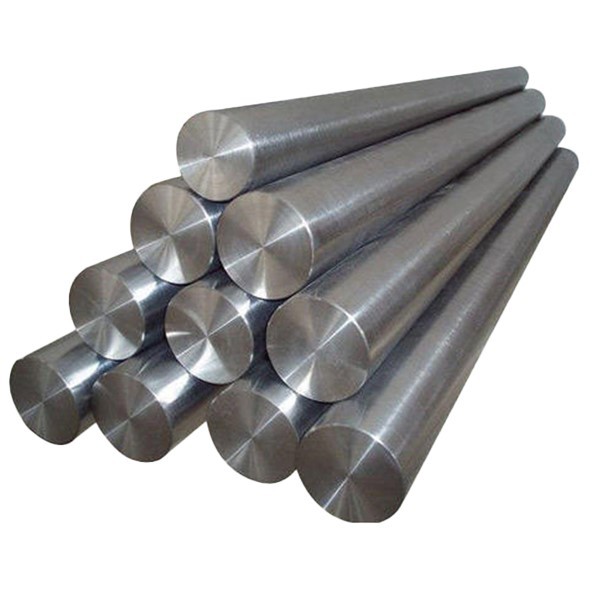

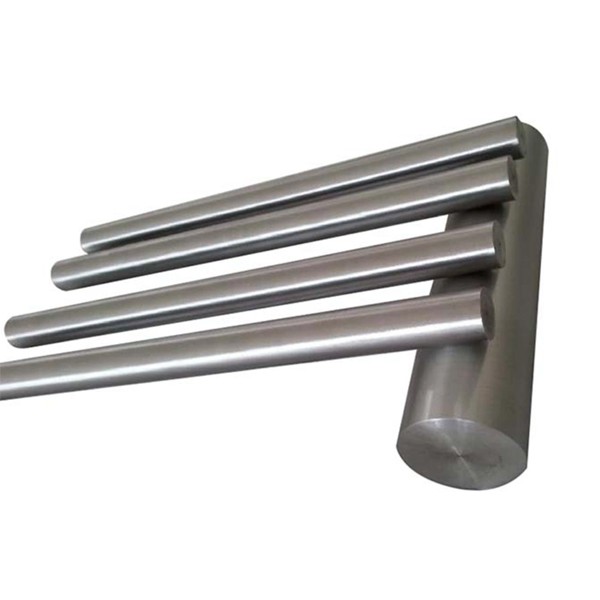

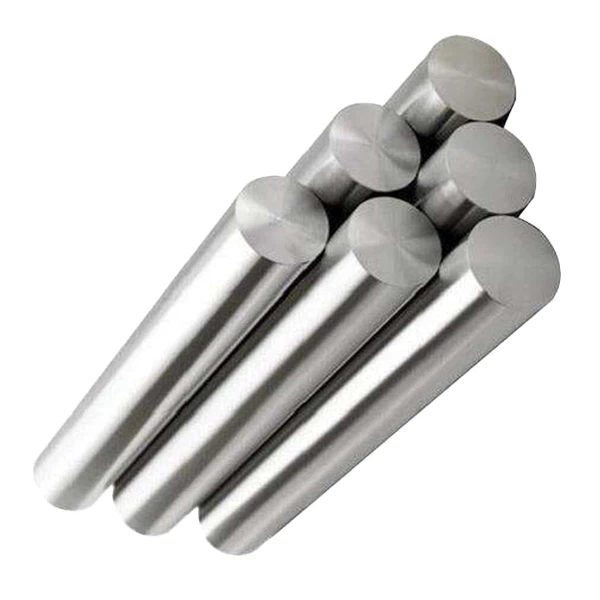

Molybdenum Bar

Molybdenum Bar in various forms of Molybdenum.

Product name: Molybdenum Bar

Standard: ASTM B387

Material: Mo >99.95%

Density: 9.8 ~ 10.2g/cc



The molybdenum bars are mainly used in drawing thin molybdenum wire, molybdenum electrodes, and steel-making additives. Meanwhile, molybdenum rods are also widely used in the furnace industry for radiation screens, elements, and sintering trays



Black Surface - The surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.



Cleaned - The surface is chemically cleaned to remove all lubricants and oxides.



Shiny finish - The surface is lathe shiny or polished. Spray sand surface



Molybdenum round bar is manufactured as random lengths pieces or cut to customers' desired lengths in diameters ranging from 2mm to 100mm. If you do not see the size of the molybdenum bar that you require, please feel free to contact us.

Width	Thickness	Length	Length Tolerance
15mm	15mm	600mm	+1mm, -0
20mm	20mm	1000mm	+1mm, -0
45mm	45mm	1200mm	+2mm, -0
60mm	60mm	1500mm	+3mm, -0





Grade	The impurity content is not more than %
	Fe	Ni	Al	Si	Mg	C	N	O
Mo-1	0.01	0.005	0.002	0.01	0.005	0.01	0.003	0.008
Mo-2	0.01	0.005	0.005	0.01	0.005	0.01	0.003	0.02



The Molybdenum Bars we produced are high in electrode strength and oxidation resistance, and they have a long service life and can resist corrosion. Our Molybdenum Rods have great metallic performance and a balanced inner structure. The surface of the products is smooth and free from scratches, rolling marks, wrinkles, dimples, incisions, discoloration, or blemishes of any kind.



High ductility and toughness

Higher recrystallization temperature (approx. 100 'C)

Better corrosion resistance against molten zinc

Better formability

Excellent strength and mechanical stability at high temperatures (up to 1900°C)



The highest working temperature where a Molybdenum rod can be used in a vacuum and environment is 1700℃. Molybdenum rods are widely used as heating elements, outgoing lines, and radius rods in high-temperature furnaces. Also, they are used as electrodes and bolts in the smelting industry. Other applications include electric vacuum parts, gaseous tubes, electrode heating in the glass industry, and wall lamp brackets in the lighting industry.



Black - Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.



Cleaned - The surface is chemically cleaned to remove all lubricants and oxides.



Ground - The surface is center-less ground to remove all coating and to achieve precise diameter control.



Sintered Molybdenum rods are high-resistant heating elements. It has a high melting point, high purity, and high density. At 1700℃, it is used in a high-temperature oxidized environment. A sintered molybdenum rod is mainly used in molybdenum wire drawing and forging.



Forged molybdenum rods are now widely used as electric heating elements in the lighting industry, electronic industry, and semiconductor industry. Forged molybdenum rods can also be used as lamp support, power tube components, and the base of a silicon rectifier.
