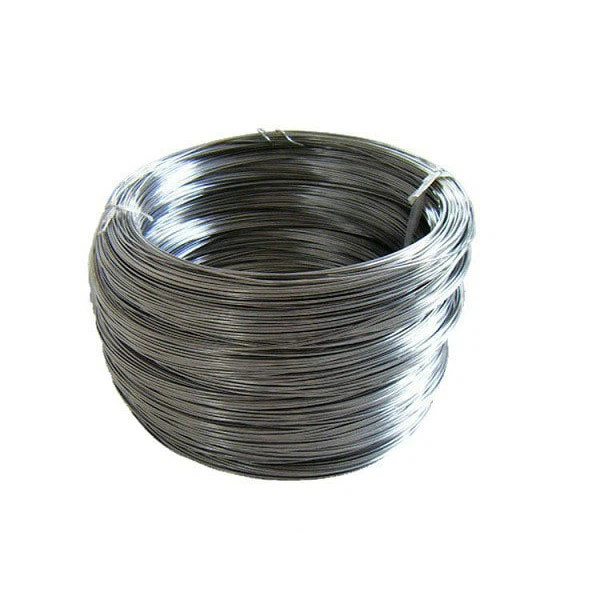

Zirconium Wire
Item: Zirconium Wire
Standards: ASTM B550/550M-07, AWS A5.24, ASTM B351, ASTM B551.
Material: R60702, R60704, R60705
Purity: 95%~99.5%
Finish: Black, Pickled, Polished (For Dia. >1mm)
Status: Hot Rolled, Cold Rolling, Annealed
Diameter: 1.0mm-5.0mm, (Coiled: 0.05mm-3.0mm)
Density: 6.5 g/cm3
Melting Point: 1,855°C
Length: Coils or customers’ requests. Multiple sizes are available and we do make customized products, including the flange, chemical reactor parts, fasteners, etc.
Product Introduction
Specifications
Zirconium wire takes on the look of a silvery metal, as do most zirconium products. Zirconium wire is excellent for the nuclear power industry with a high melting point of 1855°C (3371°F) and a small neutron absorption cross-section. Zirconium wire is also expected in many other uses as people become more familiar with the product.
Material: Zr702, Zr704, Zr705
Zr Melting Point: 1,855°C
Inspection
Room Temperature Tensile
Bend Testing
Metallography
Micro-hardness
Hardness Testing
Chemical Composition
|
Grade |
Element composition (%) < |
|||||||||
|
Zr+Hf |
Hf |
Fe+Cr |
Sn |
H |
N |
C |
Nb |
O |
||
|
R60702 |
99.2 |
4.5 |
0.20 |
-- |
0.005 |
0.025 |
0.05 |
-- |
0.16 |
|
|
R60703 |
98 |
4.5 |
-- |
-- |
--0.005 |
0.025 |
-- |
-- |
-- |
|
|
R60704 |
97.5 |
4.5 |
0.20~0.40 |
1.0~2.0 |
0.005 |
0.025 |
0.05 |
-- |
0.18 |
|
|
R60705 |
95.5 |
4.5 |
0.2 |
-- |
0.005 |
0.025 |
0.05 |
2.0~3.0 |
0.18 |
|
|
R60706 |
95.5 |
4.5 |
0.2 |
-- |
0.005 |
0.025 |
0.05 |
2.0~3.0 |
0.16 |
|
Mechanical Properties
|
Material |
State |
Rm (≥)/MPa |
Rp0.2 (≥)/MPa |
A50mm (≥)/% |
|
Zirconium 702 (UNS R60702) |
Annealed |
379 |
207 |
16 |
|
Zirconium 704 (UNS R60704) |
Annealed |
413 |
241 |
14 |
|
Zirconium 705 (UNS R60705) |
Annealed |
552 |
379 |
16 |
We ensure our zirconium wire is of the highest quality while offering first-rate customer service, and fast turn-around orders with no minimum restrictions–all at a reasonable price. No matter where you're in the world, whether your order is big or small, our pursuit of perfection in every detail doesn't stop until you are satisfied.
Packaging
Our zirconium wire is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
TNTI stocks a wide range of zirconium wire and makes products to your precise dimensions. Your needs of zirconium round wire, and zirconium weld wire can all be met. It can be supplied in random lengths or cut into fixed lengths.
