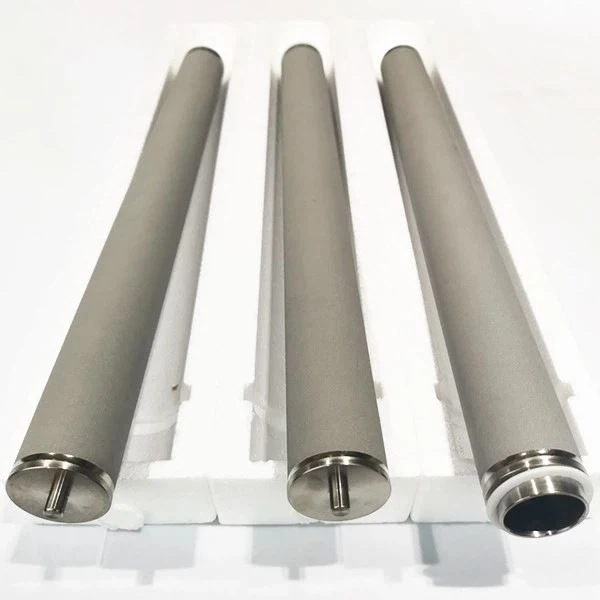

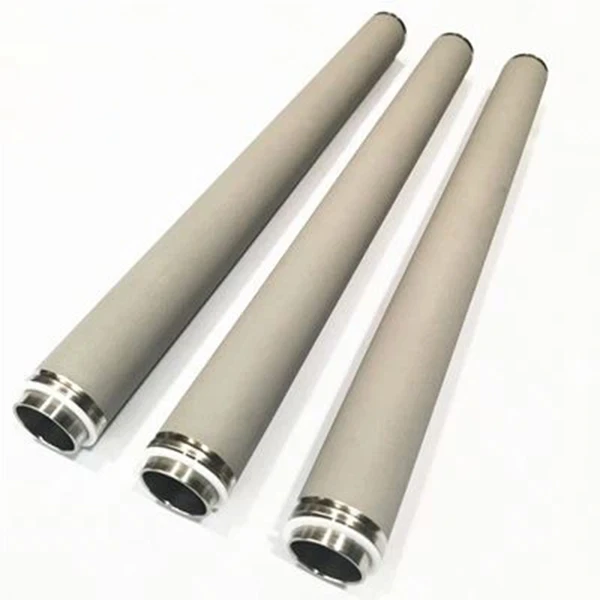

Titanium Powder Sintered Filter
Item: Titanium Powder Sintered Filter
Material: Titanium powder.
Thickness: 0.6-3.0 mm.
Length: 1000 mm.
Width: 5-340 mm.
Product Introduction
About this item:
A sintered titanium filter plate, also known as a titanium powder sintered filter, has excellent permeability, and high efficiency
Titanium powder sintered filter (including tube and plate) is a new high-efficiency porous filter material made by industrial high-purity titanium powder (99.4%) as raw material, through powder grading, molding, sintering, and mechanical welding. It is widely used in the pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical industry, metallurgical industry, and gas purification field. Owing to its pore and filtration precision, it can be adjusted in a wide range. Titanium powder sintered filter plate or tube is a new filter material that has a broad development prospect.
Sintered titanium plate is made of industrial high-purity titanium plate. A new wide filter powder material manufactured by 9 processes, manufacturing and mechanical manufacturing such as filtration processing. Adjust supply within a reasonable range, widely used in the pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical industry, metallurgical industry, and gas purification.
Characteristics
Appropriate, the hole shape is quiet.
High filtration rate, small filtration resistance, and high permeability.
With high-temperature resistance, it can be used environment of below 250℃.
Good chemical stability, acid, and alkali resistance (ph2-12), and antioxidant properties
No particles fall off, no secondary pollution to the original liquid, and meets the requirements of food hygiene and drug GMP.
Good mechanical properties, low differential pressure, large flow, pressure filtration, and simple operation.
It has a strong anti-microbial ability and does not have a microbial effect.
It can be regenerated online, is easy to clean, and has a long service life (usually several times that of the membrane tube).
The molding process is good, and the overall length can reach 1000mm without welding.
Non-magnetic and non-toxic, with good compatibility with human tissue and blood, widely used in medicine and food
Applications
Steam filtration.
Filtration stage after ozone sterilization and filtration of ozone aeration.
Filtration in decarbonization and dilution of transfusion.
High corrosive liquid and gas purification.
High pressure and temperature resistance.
Oil sands separation in the oilfield.
Features of titanium powder sintered filter:
High dirt holding capacity and filtering accuracy.
High porosity and excellent permeability.
High temperature and pressure resistance.
Strong acid and alkali corrosion resistance.
Ozone oxidation resistance.
Provide a large filter area per unit of volume and it can be welded and machined.
Washable, recycled, and saves operating costs.
Long life span.
|
Specifications of Titanium Powder Sintered Filter |
||||||
|
Filtration precision |
Minimum Thickness |
Maximum Thickness |
Minimum Width |
Maximum Width |
Maximum Length |
|
|
T9 |
0.2 |
0.6 |
1.2 |
5 |
340 |
1000 |
|
T8 |
0.5 |
0.6 |
1.5 |
5 |
340 |
1000 |
|
T7 |
1 |
0.6 |
2.0 |
5 |
340 |
1000 |
|
T6 |
2 |
0.6 |
2.5 |
5 |
340 |
1000 |
|
T5 |
5 |
0.6 |
2.8 |
5 |
340 |
1000 |
|
T4 |
10 |
0.6 |
2.8 |
5 |
340 |
1000 |
|
T3 |
20 |
0.6 |
3.0 |
5 |
340 |
1000 |
|
T2 |
30 |
0.6 |
3.0 |
5 |
340 |
1000 |
|
T1 |
50 |
0.8 |
3.0 |
5 |
340 |
1000 |
