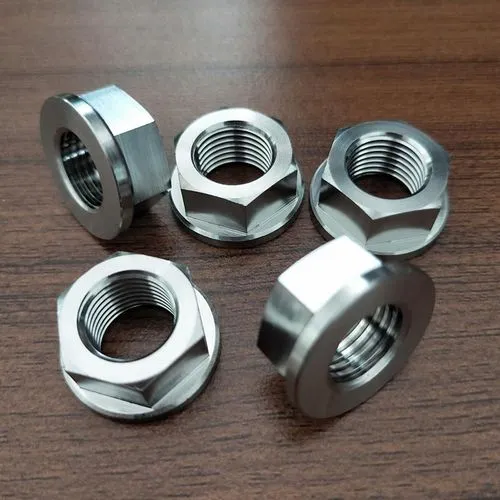

Gr5 Titanium Hex Flange Nut

Gr5 Titanium hex flange nuts are commonly used standard components for fastening machine parts by using the physical and mathematical principles of circular rotation and friction of objects.



Application: Anodizing, Chemical Electrolysis, Metallurgy, Salt Making, Heat Exchangers, Industrial Pipelines, etc.



Titanium Gr5 (6Al-4V) Rolled threads for greater fatigue strength, yield strength can reach 120ksi, with good corrosion resistance.



Advantages of Titanium Fasteners

1. Super corrosion resistance and high-temperature resistance;

2. High strength and lightweight;

3. High toughness, non-toxic and non-magnetic;

4. Good heat exchange performance and low elastic modulus.

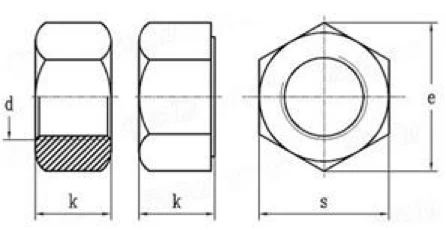

Size(d)	P	k		s		e
	Pitch	Max	Min	Max	Min	Min
M1.6	0.35	1.3	1.05	3.2	3.02	3.41
M2	0.4	1.6	1.35	4	3.82	4.32
M2.5	0.45	2	1.75	5	4.82	5.45
M3	0.5	2.4	2.15	5.5	5.32	6.01
(M3.5)	0.6	2.8	2.55	6	5.82	6.58
M4	0.7	3.2	2.9	7	6.78	7.66
M5	0.8	4.7	4.4	8	7.78	8.79
M6	1	5.2	4.9	10	9.78	11.05
M8	1.25	6.8	6.44	13	12.73	14.38
M10	1.5	8.4	8.04	16	15.73	17.77
M12	1.75	10.8	10.37	18	17.73	20.03
(M14)	2	12.8	12.1	21	20.67	23.36
M16	2	14.8	14.1	24	23.67	26.75
(M18)	2.5	15.8	15.1	27	26.16	29.56
M20	2.5	18	16.9	30	29.16	32.95
(M22)	2.5	19.4	18.1	34	33	37.29
M24	3	21.5	20.2	36	35	39.55
(M27)	3	23.8	22.5	41	40	45.2
M30	3.5	25.6	24.3	46	45	50.85
(M33)	3.5	28.7	27.4	50	49	55.37
M36	4	31	29.4	55	53.8	60.79
(M39)	4	33.4	31.8	60	58.8	66.44
M42	4.5	34	32.4	65	63.1	71.3
(M45)	4.5	36	34.4	70	68.1	76.95
M48	5	38	36.4	75	73.1	82.6
(M52)	5	42	40.4	80	78.1	88.25
M56	5.5	45	43.4	85	82.8	93.56
(M60)	5.5	48	46.4	90	87.8	99.21
M64	6	51	49.1	95	92.8	104.86





Item	Gr5 Titanium Hex Flange Nuts
Specification	M5 M6 M8 M10 M12 M14 M16 M20.
Standard	DIN6923
Material	Gr5 Titanium Alloy (Ti6Al4V)
Head Type	Hexagon head
Size	M5 M6 M8 M10 M12 M14 M16 M20
Length	As per your requirements
Color	Natural or PVD colored









Quality inspected before shipping



Lifetime warranty.
