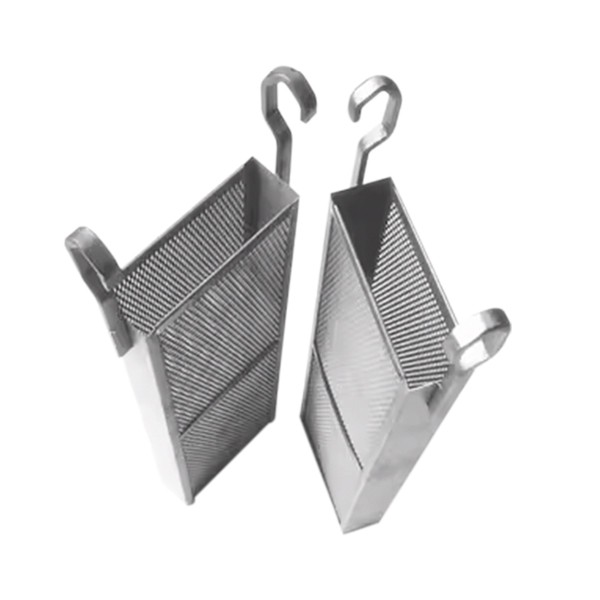

Titanium Anode Basket For Anodizing
Item: Titanium Anode Basket for Anodizing
Applications: Electroplating, Cathodic Protection
Technique: Brush Coating
Dimensions: as per the customer’s request.
Material: Pure Titanium Gr2
Purity (%): 99.6%
Finish: Sand Blasting, Acid Washing, Brush Coating, etc.
Shape: Customization.
Inspection: SGS, ISO9001:2008
Manufacturing: Cutting, welding, bending, etc.
Product Introduction
About the titanium anode basket for anodizing:
Titanium electrodes are now used in developed countries such as Japan, the United States, and Germany, it not only greatly saves electroplating energy consumption, but also can increase electroplating current density, for the production of thick galvanized, tin steel plate-created conditions.
Description
The titanium basket is made of high-quality Gr2 pure titanium with a purity of 99.7%. Gr2 pure titanium has strong corrosion resistance. It is suitable for loading anode materials in various electroplating tanks. It usually adopts precision welding technology, and the welding joints are tightly combined and firm.
Precautions
The month of the titanium basket should be slightly higher than the liquid level to prevent anode slag from flowing out.
The lower end of the titanium basket should be 100~150mm higher than the part to avoid excessive current concentration of the lower part, causing scorching.
About us
West-Ti is committed to integrating engineering steel resources and serving the global engineering market. We have more than 20 years of experience in titanium materials and products.
Referring to resources and information, we have established cooperative and stronger relationships with nearly a hundred enterprises, either state-owned or privately owned in China.
Moreover, we have built long, deep, and close business relationships with dozens of titanium companies, Sharing and holding equities with several steel enterprises. Because of the close cooperation with titanium companies and our pioneering spirit, we can ensure we survive over-the-top competition, and ensure our customers get what they want!
Description
|
Material |
Gr2 Pure Titanium |
|
Dimension |
Customized dimensions and shapes are available, we can make them according to the customized design and drawing |
|
Specification |
Sandblasting, Acid washing, and Brush Coating |
|
Main Working Parameters |
I. Current density: <2000A/M2. II. Temperature: <60°C. III. PH: 1~14. IV. Max content of Fluoride ion is 200PPM |
|
Main Characters |
I. Dimensionally stable II. MMO coating is insoluble. III. Energy-saving and highly efficient. IV. High current efficiency and catalytic. V. Operating voltage is stable. VI. Long service life. VII. Lightweight |
|
Features |
1. Hight anti-corrosion property 2. Lasting working life 3. Keep the operating voltage stable 4. High current efficiency 5. High catalytic property |
|
Remarks |
1. Titanium anode also could be called an MMO anode, DSA Insoluble anode 2. Cathode can be provided |
|
Applications |
Sewage treatment Cathode protection Noble metal plating (silver, gold) Sea water antifouling Testing electrode Electrolytic synthesis of organic Electroplating Industry Electrodialysis Electrolytic water |
Technical features
High anti-corrosion performance, high current efficiency, long lifespan, electrode lightweight, loss activity after repair, electrode substrate can be repeated use
Applications of titanium anode basket for anodizing:
Electroplating, anodizing, plating, etc.
The existence of each of our Gr2 Titanium anode baskets for anodizing electroplating/ Titanium Mesh Basket for Anodizing must have its special value, and there is a corresponding positioning from the production. We actively contribute to the promotion of a harmonious society and establish a good social image.
